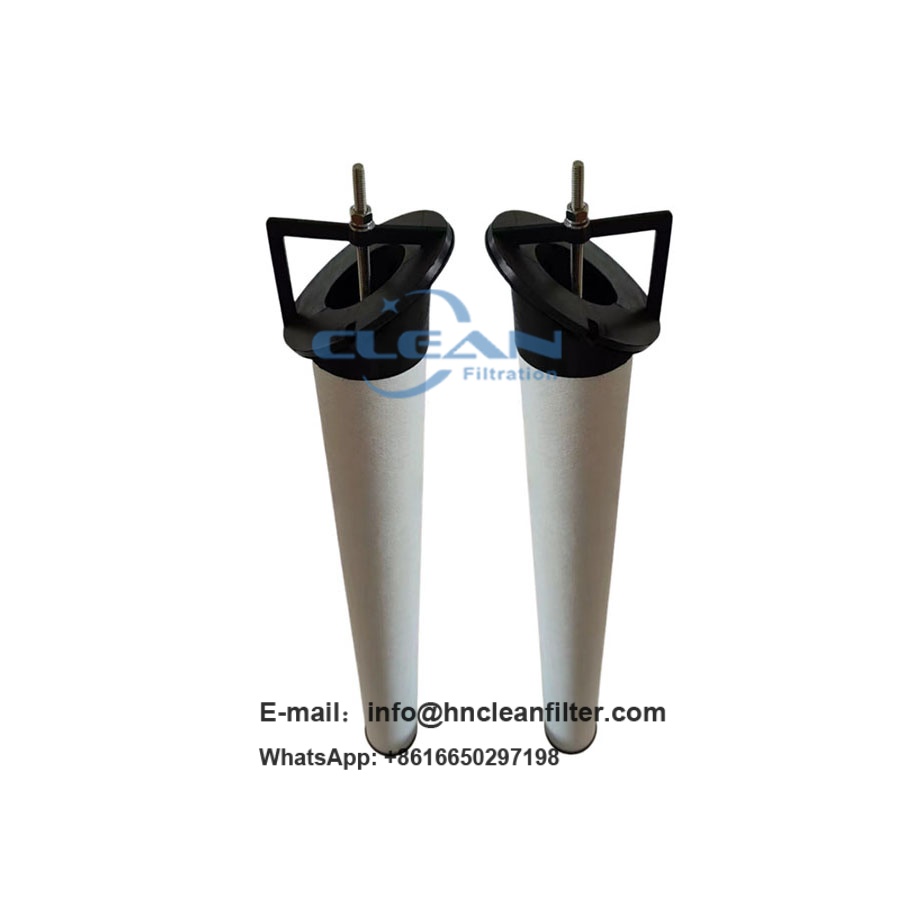

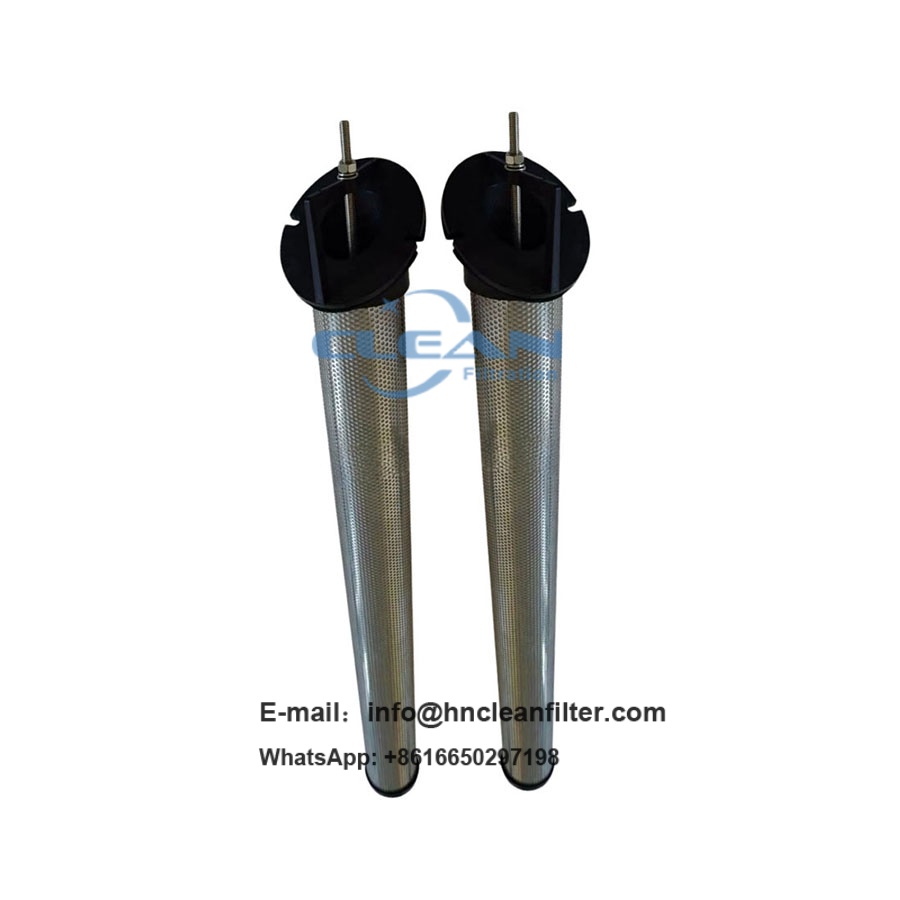

Replace compressed air filter EP-22-A EP-22-C EP-22-AA EP-22-T
EP‑22 series coalescing filter elements are widely used for compressed‑air purification, removing solid particles, water mist and oil aerosol from compressor outlet air.
Multiple filter grades available for multi‑stage filtration configuration.
Suitable for general machinery, pneumatic systems, painting, packaging and other industrial compressed‑air applications.
| Model | Grade | Filtration Rating | Residual Oil Content | Function | Typical Installation Position |
|---|---|---|---|---|---|
| EP‑22‑C | Coarse | 5 μm | 5 ppm | Removal of large‑size solid particles, coarse dust and bulk liquid contaminants | First‑stage pre‑filter after air compressor |
| EP‑22‑T | General | 1 μm | 0.5 ppm | Removal of water mist and medium‑size particles, medium oil removal | Before refrigerated air dryer |
| EP‑22‑A | High‑efficiency | 0.01 μm | 0.01 ppm | High‑efficiency coalescing removal of oil aerosol | After refrigerated air dryer, most common stage |
| EP‑22‑AA | Ultra‑high efficiency | 0.01 μm | 0.001 ppm | Ultra‑low residual oil output for high‑demand processes | For painting, precision instruments, sensitive pneumatic equipment |
EP‑22 series compressed air precision filter elements EP‑22‑C EP‑22‑T EP‑22‑A EP‑22‑AA,
replacement for YQ‑42F housing, 42 m³/min flow rate, coalescing filter cartridges for industrial compressed‑air system.
Application Notes
- Recommended multi‑stage installation sequence: C → T → A → AA
- Replace element immediately once differential pressure hits 0.07 MPa to avoid excessive energy consumption.
- Service cycle shall be shortened if inlet compressed‑air contains heavy oil contamination.
